Interactions

A Smart-ID app can support different interaction types and a relying party can demand a particular interaction with or without a fallback possibility. Different interactions can support different amount of data to display information to user.

Available interactions and possible type value and extra parameter combinations are listed in the following table. Availability depends on the chosen link flow. Linked notification based flow refers to the BASE/v3/signature/notification/linked endpoint. Each interaction is defined by an object that has 2 parameters: type and either displayText60 or displayText200.

Interaction type & extra parameter Description Device link based flows Notification based flows Linked notification based flow

displayTextAndPIN with displayText60

The simplest interaction with max 60 chars of text and PIN entry on a single screen.

Yes

Yes

Yes

confirmationMessage with displayText200

First screen is for text only (max 200 chars) and has Confirm and Cancel buttons. Second screen is for PIN.

Yes

Yes

Yes

confirmationMessageAndVerificationCodeChoice with displayText200

First screen combines text and Verification Code choice. Second screen is for PIN.

No

Yes

No

Requirements for interactions object

RP uses interactions parameter to list interactions it allows for the current session. The interactions parameter is a JSON array that is Base64 encoded. Not all app versions may support all interactions. The order of the array items are significant as the Smart-ID server is aware of which app installations support which interactions and will send the interactions to the Smart-ID app in the same order as they are in the interactions array.

IMPORTANT

The following requirements apply for the interaction object:

  1. For each interaction, the type and the corresponding displayText (either displayText60 or displayText200) parameters are mandatory. Meaning that each interaction must include a non-empty displayText60 or displayText200 parameter.

  2. It is forbidden to provide both displayText60 and displayText200 parameters.

  3. It is not allowed to have more than one interaction with the same type value.

  4. In addition, it is not allowed to list interaction types not meant for the flow (device link flow or notification based flow).

  5. JSON to Base64 encoding is non-deterministic (parameters may be ordered randomly, whitespace can be optional). Therefore, the specific Base64-encoded string generated from the interactions object to initiate the session must be stored and reused in all subsequent calculations. This is relevant for all device link flows, more specifically in:

Failing to meet the first 4 requirements above will result in an error (HTTP 400 Bad Request). Failing to follow the last recommendation can result in some dynamic link sessions failing. If authCode calculation returns a different value from what RP API calculates, then the device link will be rejected due to wrong authCode value. If ACSP_V2 digest is calculated incorrectly, a valid user authentication signature will appear to be invalid and RP will have to deny the authentication attempt.

The interaction that was actually used is reported back to RP with interactionTypeUsed response parameter to the session request. If an app cannot support any interaction requested then the session is cancelled with reason code REQUIRED_INTERACTION_NOT_SUPPORTED_BY_APP.

Guidance for writing display texts

The displayText60 and displayText200 parameters are used by the Smart-ID app to display text on the screen. These parameters must be short and clear. The preferred way of writing displayText60 and displayText200 is to explain the action user is taking. Interaction type must also be considered when writing a good display text.

The following are a few examples of good displayText60 and displayText200:

  • You are logging in to internet bank

  • Log in to mobile banking

  • Sign internet banking contract

  • Sign document Contract.asice

  • Transfer 1000€ to Jane Doe

the RP name is not written explicitly as for all interaction types, the RP name is always displayed to the user together with the display text.

Base64 encoding interactions

Before sending the RP API request, interactions array must be turned into a string and then must be Base64 encoded. interactions should be minified to lower the overhead. The Base64 encoding can be done as follows:

interactions := BASE64-ENCODE(TO-STRING(MINIFY(interactionsJson)))
  • Java

  • PHP

  • Python

  • Go

  • Rust

  • Kotlin

  • C#

  • Node.js

  • Ruby

import java.nio.charset.StandardCharsets;
import java.util.Base64;

public class InteractionsBase64Encode {

  public static void main(String[] args) {
    String interactions = """
[{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]""";

    String interactionsBase64 = Base64.getEncoder().encodeToString(
      interactions.getBytes(StandardCharsets.UTF_8)
    );

    System.out.println(interactionsBase64);
  }
}
<?php
$interactionsJsonStr = <<<EOD
[{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]
EOD;

$interactionsBase64 = base64_encode($interactionsJsonStr);
echo $interactionsBase64;

?>
import base64
import json

interactions = [{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]
interactions_string = json.dumps(interactions, separators=(',', ':'))
interactions_base64 = base64.b64encode(interactions_string.encode('utf-8'))
print(interactions_base64)
package main

import (
	"encoding/base64"
	"encoding/json"
	"fmt"
)

type Interactions struct {
	Type           string `json:"type"`
	DisplayText200 string `json:"displayText200,omitempty"`
	DisplayText60  string `json:"displayText60,omitempty"`
}

func main() {
	var interactions []Interactions = []Interactions{{Type: "confirmationMessage", DisplayText200: "Longer description of the transaction context"}, {Type: "displayTextAndPIN", DisplayText60: "Short description of the transaction context"}}
	interactionsBytes, err := json.Marshal(interactions)
	if err != nil {
		fmt.Printf("error: %s\n", err)
		return
	}
	var interactionsBase64 []byte = []byte(base64.StdEncoding.EncodeToString(interactionsBytes))
	fmt.Printf("%q\n", interactionsBase64)
}
use base64::Engine as _;
use serde::{Deserialize, Serialize};

type Interactions<'a> = Vec<Interaction<'a>>;

#[derive(Debug, Deserialize, Serialize)]
enum DisplayText<'a> {
    #[serde(rename = "displayText200")]
    DisplayText200(&'a str),
    #[serde(rename = "displayText60")]
    DisplayText60(&'a str),
}

#[derive(Serialize, Deserialize)]
struct Interaction<'a> {
    #[serde(rename = "type")]
    type_field: &'a str,
    #[serde(flatten)]
    display_text: DisplayText<'a>,
}

fn main() {
    let interactions: Interactions = vec![Interaction{type_field: "confirmationMessage", display_text: DisplayText::DisplayText200("Longer description of the transaction context")}, Interaction{type_field: "displayTextAndPIN", display_text: DisplayText::DisplayText60("Short description of the transaction context")}];

    let interactions_base64: String = base64::engine::general_purpose::STANDARD.encode(serde_json::to_string(&interactions).unwrap().into_bytes());
    println!("{:?}", interactions_base64);
}
import java.nio.charset.StandardCharsets
import java.util.Base64

fun main() {
    val interactions: String = """
[{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]""".trimIndent()

    val interactionsBase64: String = Base64.getEncoder().encodeToString(
        interactions.toByteArray(StandardCharsets.UTF_8)
    )

    println(interactionsBase64)
}
using System;
using System.Text;

public class InteractionsBase64Encode
{
    public static void Main(string[] args)
    {
        String interactionsJson = """[{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]""";
        String interactionsBase64 = Convert.ToBase64String(Encoding.UTF8.GetBytes(interactionsJson));
        Console.WriteLine(interactionsBase64);
    }
}
const interactions = [{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}];
const interactionsString = JSON.stringify(interactions);
const interactionsBase64 = Buffer.from(interactionsString).toString('base64');
console.log(interactions_base64);
require 'base64'
require 'json'

interactions = [{"type":"confirmationMessage","displayText200":"Longer description of the transaction context"},{"type":"displayTextAndPIN","displayText60":"Short description of the transaction context"}]
interactions_string = JSON.generate(interactions)
interactions_base64 = Base64.strict_encode64(interactions_string)
puts interactions_base64
Example 1. interactions parameter
W3sidHlwZSI6ImNvbmZpcm1hdGlvbk1lc3NhZ2UiLCJkaXNwbGF5VGV4dDIwMCI6IkxvbmdlciBkZXNjcmlwdGlvbiBvZiB0aGUgdHJhbnNhY3Rpb24gY29udGV4dCJ9LHsidHlwZSI6ImRpc3BsYXlUZXh0QW5kUElOIiwiZGlzcGxheVRleHQ2MCI6IlNob3J0IGRlc2NyaXB0aW9uIG9mIHRoZSB0cmFuc2FjdGlvbiBjb250ZXh0In1d

interactions elements examples

Example 2. confirmationMessage only, if not available then fail (device link flow).
Before encoding
[
  {
    "type": "confirmationMessage",
    "displayText200": "Longer description of the transaction context"
  }
]
Base64 encoded
{
  "interactions": "W3sidHlwZSI6ImNvbmZpcm1hdGlvbk1lc3NhZ2UiLCJkaXNwbGF5VGV4dDIwMCI6IkxvbmdlciBkZXNjcmlwdGlvbiBvZiB0aGUgdHJhbnNhY3Rpb24gY29udGV4dCJ9XQ=="
}
App visualization - confirmation message
confirmationMessage 1
Initial screen

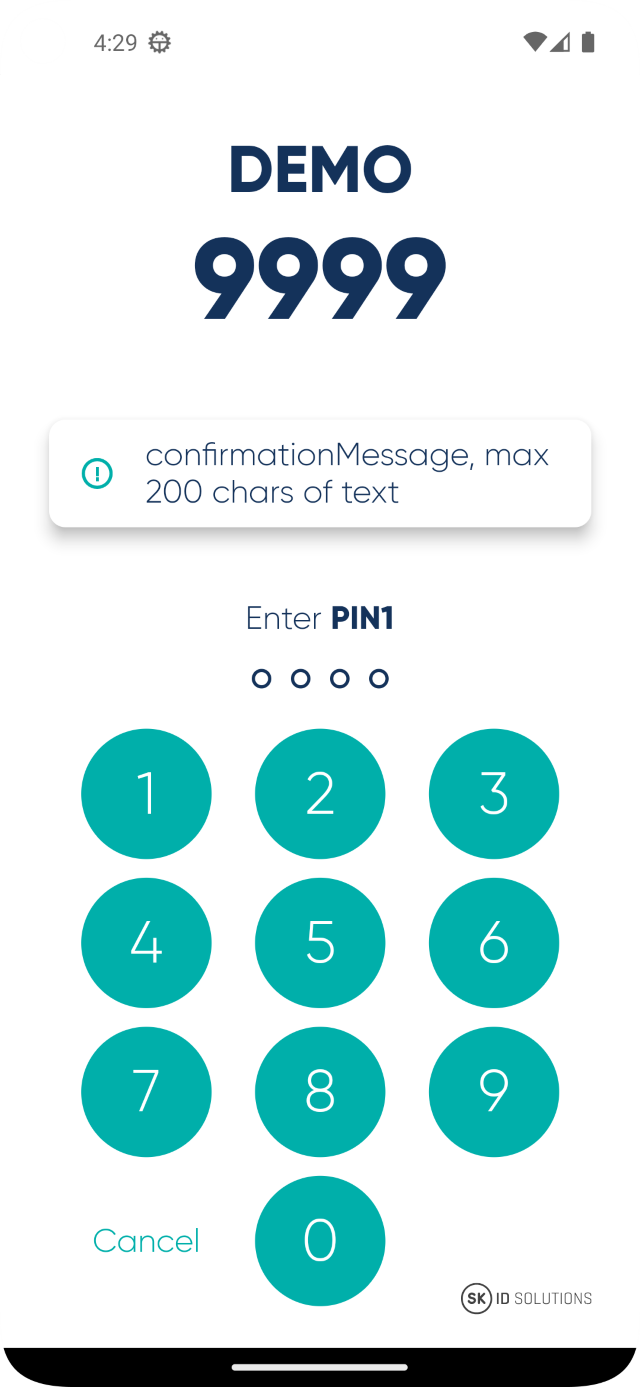

confirmationMessage 2
PIN entry screen
Watch visualization - confirmation message

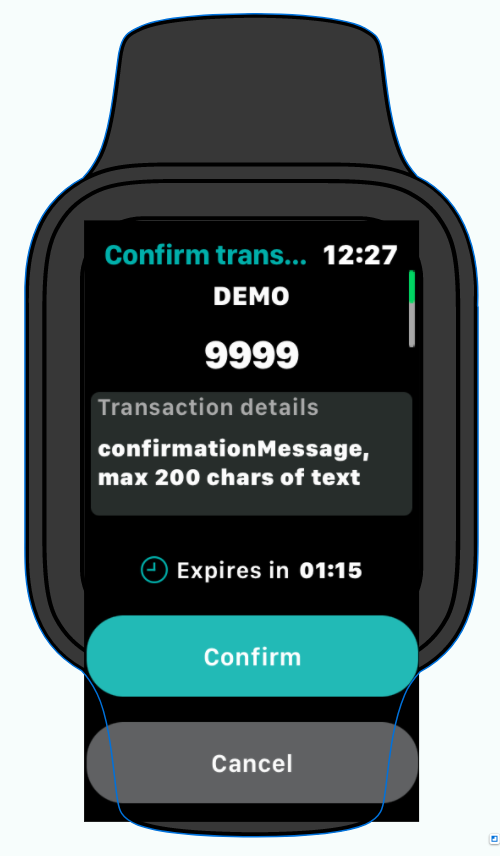

confirmationMessage 1 watch
Initial screen (scrolls down)

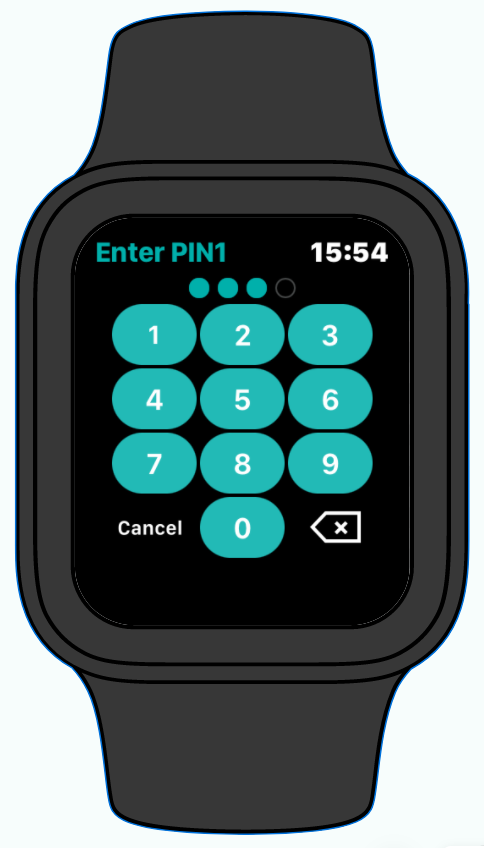

confirmationMessage 2 watch
PIN entry screen
Example 3. displayTextAndPIN only, if not available then fail (device link flow).
Before encoding
[
  {
    "type": "displayTextAndPIN",
    "displayText60": "Short description of the transaction context"
  }
]
Base64 encoded
{
  "interactions": "W3sidHlwZSI6ImRpc3BsYXlUZXh0QW5kUElOIiwiZGlzcGxheVRleHQ2MCI6IlNob3J0IGRlc2NyaXB0aW9uIG9mIHRoZSB0cmFuc2FjdGlvbiBjb250ZXh0In1d"
}
App visualization - display text and PIN

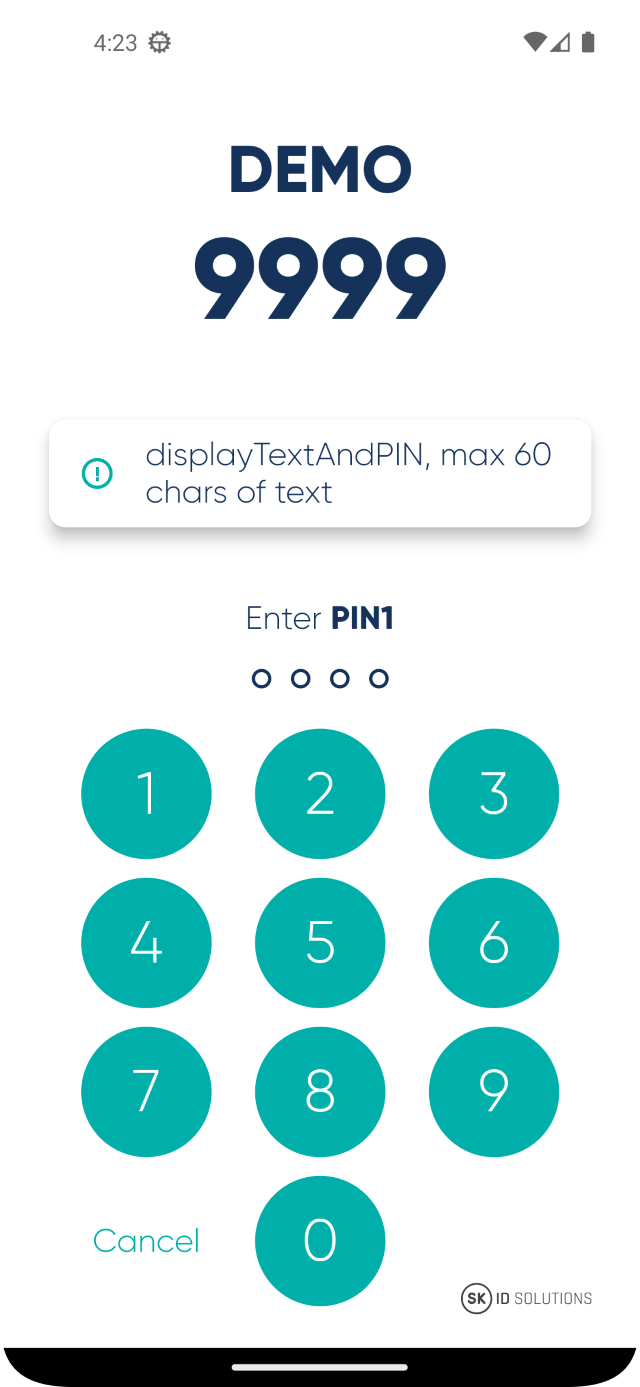

displayTextAndPIN 1
Initial screen
Watch visualization - display text and PIN

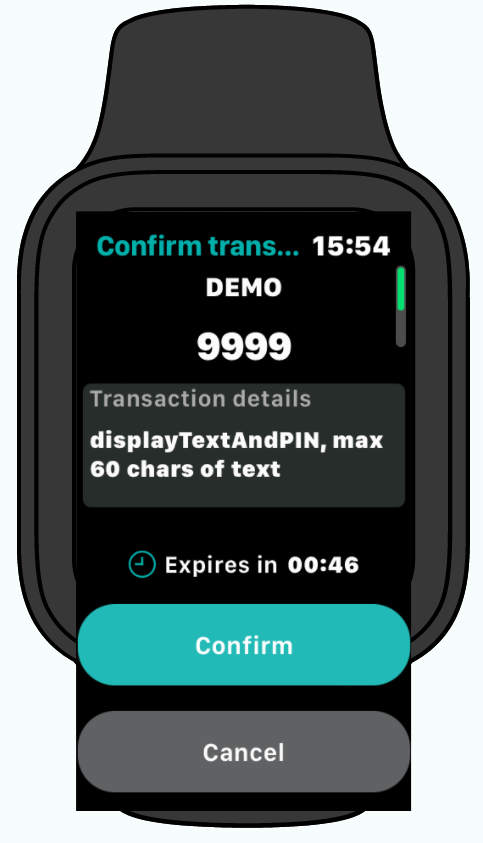

displayTextAndPIN 1 watch
Initial screen (scrolls down)
displayTextAndPIN 2 watch
PIN entry screen
Example 4. RP first choice is confirmationMessage, if not available then fall back to displayTextAndPIN (device link flow).
Before encoding
[
  {
    "type": "confirmationMessage",
    "displayText200": "Longer description of the transaction context"
  },
  {
    "type": "displayTextAndPIN",
    "displayText60": "Short description of the transaction context"
  }
]
Base64 encoded
{
  "interactions": "W3sidHlwZSI6ImNvbmZpcm1hdGlvbk1lc3NhZ2UiLCJkaXNwbGF5VGV4dDIwMCI6IkxvbmdlciBkZXNjcmlwdGlvbiBvZiB0aGUgdHJhbnNhY3Rpb24gY29udGV4dCJ9LHsidHlwZSI6ImRpc3BsYXlUZXh0QW5kUElOIiwiZGlzcGxheVRleHQ2MCI6IlNob3J0IGRlc2NyaXB0aW9uIG9mIHRoZSB0cmFuc2FjdGlvbiBjb250ZXh0In1d"
}
App visualization - confirmation message
confirmationMessage 1
Initial screen
confirmationMessage 2
PIN entry screen
Watch visualization - confirmation message
confirmationMessage 1 watch
Initial screen (scrolls down)
confirmationMessage 2 watch
PIN entry screen
Example 5. confirmationMessageAndVerificationCodeChoice only, if not available then fail (notification based flow).
Before encoding
[
  {
    "type": "confirmationMessageAndVerificationCodeChoice",
    "displayText200": "Longer description of the transaction context"
  }
]
Base64 encoded
{
  "interactions": "W3sidHlwZSI6ImNvbmZpcm1hdGlvbk1lc3NhZ2VBbmRWZXJpZmljYXRpb25Db2RlQ2hvaWNlIiwiZGlzcGxheVRleHQyMDAiOiJMb25nZXIgZGVzY3JpcHRpb24gb2YgdGhlIHRyYW5zYWN0aW9uIGNvbnRleHQifV0="
}
App visualization - confirmation message and VC choice

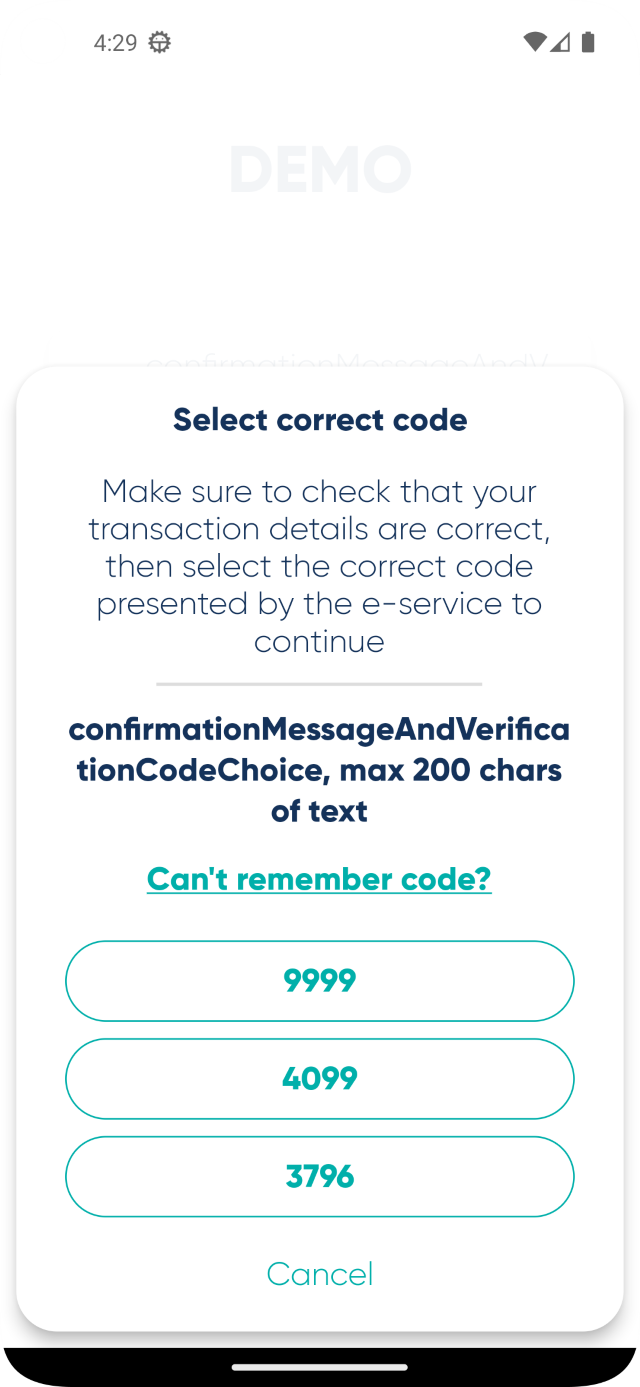

confirmationMessageAndVerificationCodeChoice 1
Initial screen

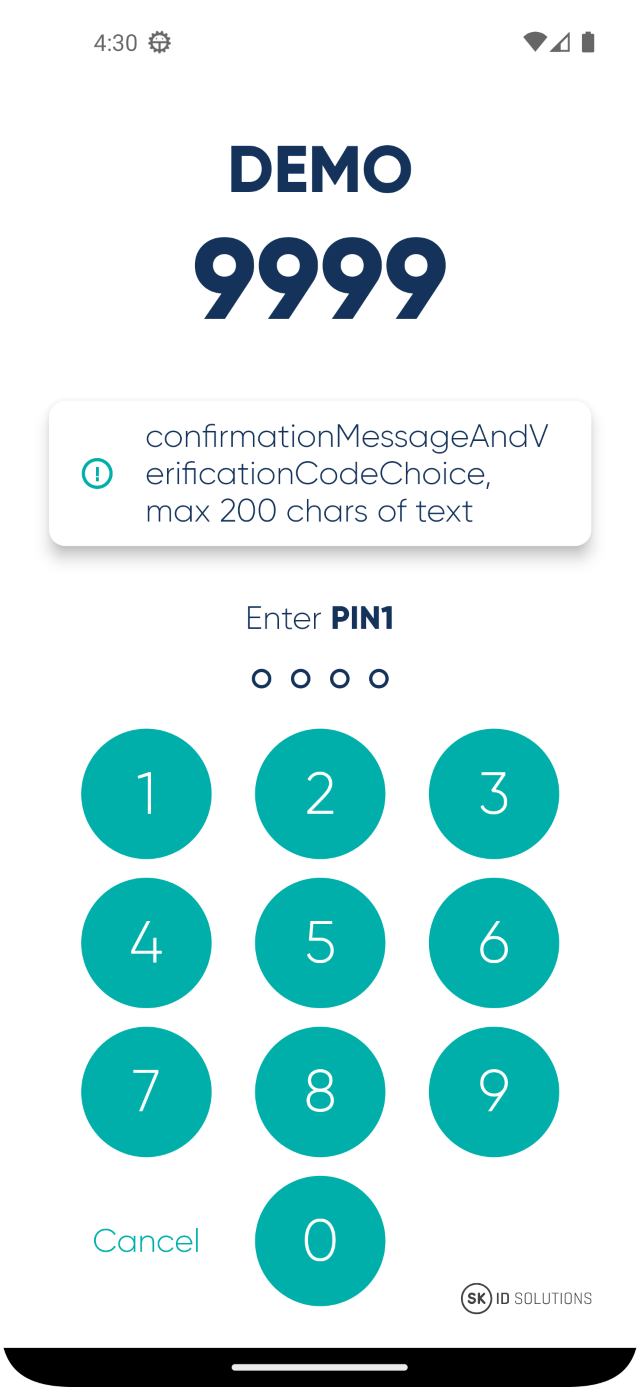

confirmationMessageAndVerificationCodeChoice 2
PIN entry screen
Watch visualization - confirmation message and VC choice

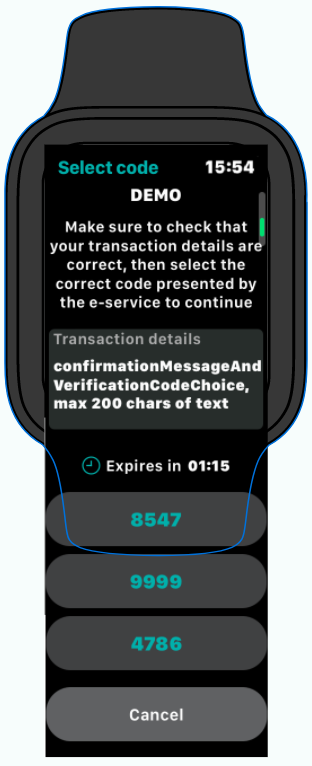

confirmationMessageAndVerificationCodeChoice 1 watch
Initial screen (scrolls down)
confirmationMessageAndVerificationCodeChoice 2 watch
PIN entry screen
